Model: | MOS 63394-02-5 |
Place of Origin: | Zhejiang,China (Mainland) |
CAS NO.: | 63394-02-5 |

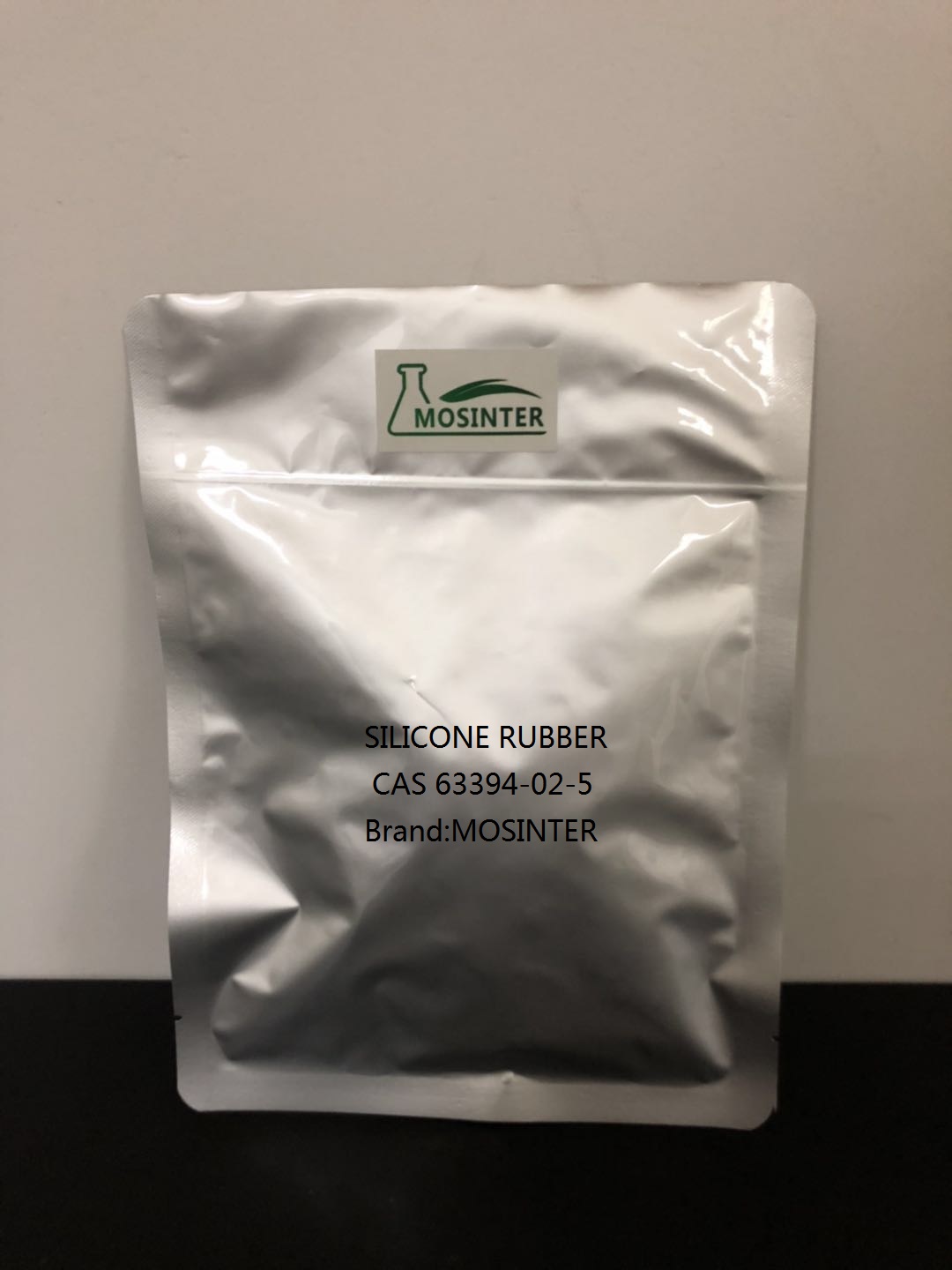

SILICONE RUBBER (CAS:63394-02-5)
Appearance | Transparent and flowing |
Relative Density | 1.0 ~1.1 g/cm3 |
Surface dry time | 30 ± 5 min |
Durometer Shore A | 20 ± 5 |
Tensile Strength | ≥ 2.5 MPa |
Shearing Strength | ≥ 1.5 MPa |
Elongation | 250% ~ 400% |
Volume resistivity | ≥ 5.0×1014 Ω·cm |
Dielectric Breakdown Strength | ≥ 20 kV/mm |
Dielectric Constant | 2.8, 1.2 MHz |
Dielectric Shrink Factor | <0.002, 1.2 MHz |
Temperature | -60℃ ~ 220℃ |
Viscosity | 400 ~ 500 mPa·s |
Flammability Class | V-0 |
Product Description
This product is a one-component, low viscosity, off oxime RTV silicone adhesive potting high temperature.
It is a condensation reaction through the moisture in the air caused by the release of low-molecular crosslinking,
vulcanized into high performance elastomer. It has excellent resistance to thermal changes, anti-stress properties,
high temperature resistance, high-temperature long-term flexibility and stability, anti-UV, anti-aging. And it has
excellent insulation, moisture, shock, corona resistant, anti-leakage and chemical resistance properties. Capable of
electronic components for the sealing effect and the surrounding environment does not produce pollution, and full
compliance with EU rohs directive.
Product Usage
This product is suitable for industrial production of various structural adhesive potting, such as: power supply, led module
encapsulation; photoelectric displays, electronic components, electrical module, semiconductor equipment, PCB waterproof;
bulb outer surface coating; thin insulation potting; delicate electronic components moisture, water, packaging, insulation and
a variety of circuit board coating protection; waterproof coating electrical and communications equipment; led display module
and pixel waterproof package; for Elastic bonding various electronic sensors; waterproof, shockproof meter underwater adhesive;
elastic bonding of metal and non-metallic materials; potting various optical instruments, chemical equipment, mirrors, electrical equipment,
small appliances, etc. potting; ordinary small or thin potting (potting thickness less than 6mm, such as greater than 6mm should be selected
deep curing two-component, Our research and development of two-component curable potting material can be deep, it can completely replace
the Republic of Korea One component potting, and the sticky material non-corrosive.)
Transport storage
1. this product has a shelf life of 12 months (8-25 ℃).
2. these products are non-dangerous goods, according to general chemical transport, be careful leakage during transportation!
3. more than the shelf life of the product must be confirmed before use exception.
